TCD AIO Series (001) — Integrated Thin Client with Built-In Display

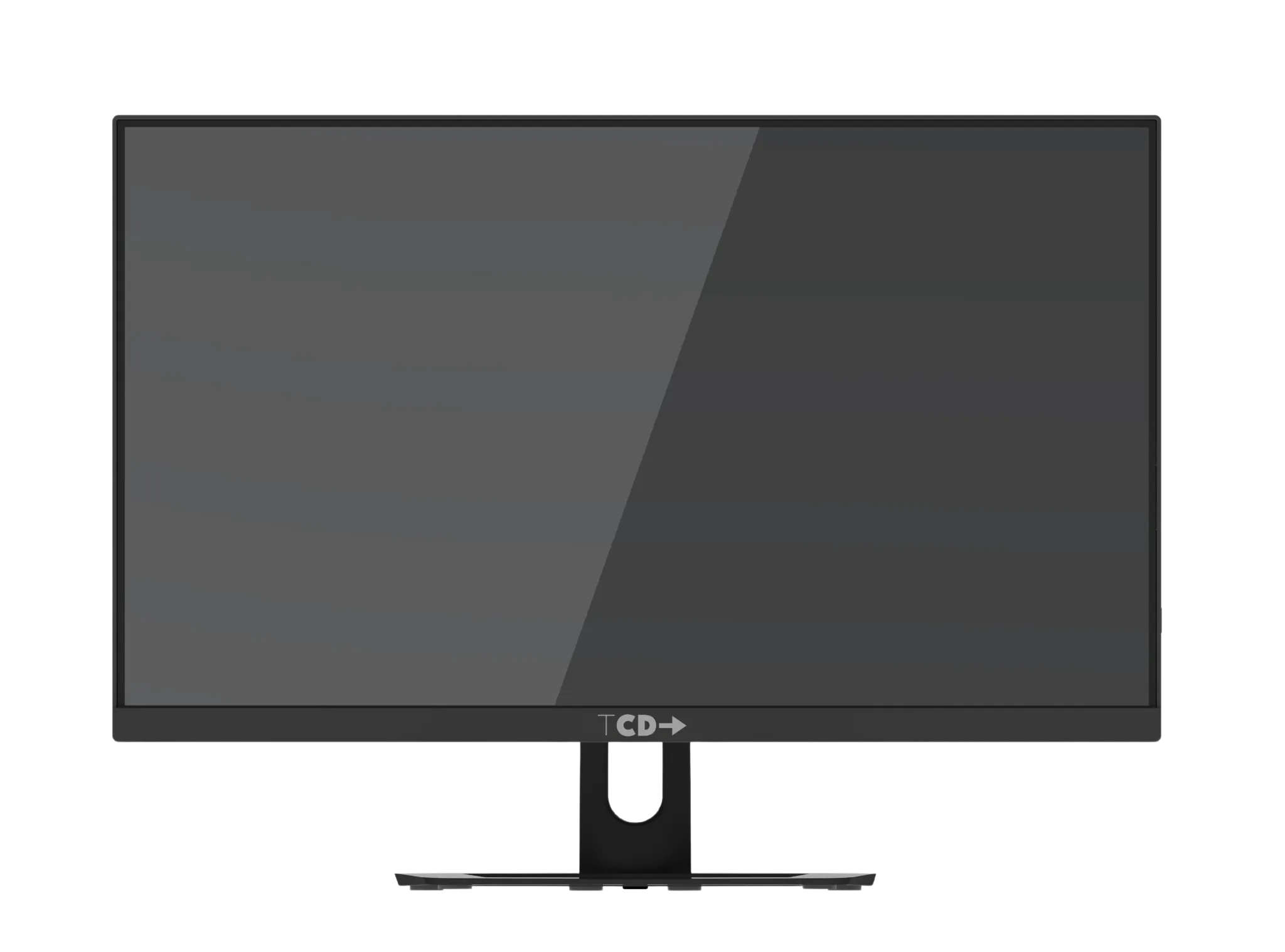

Front view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

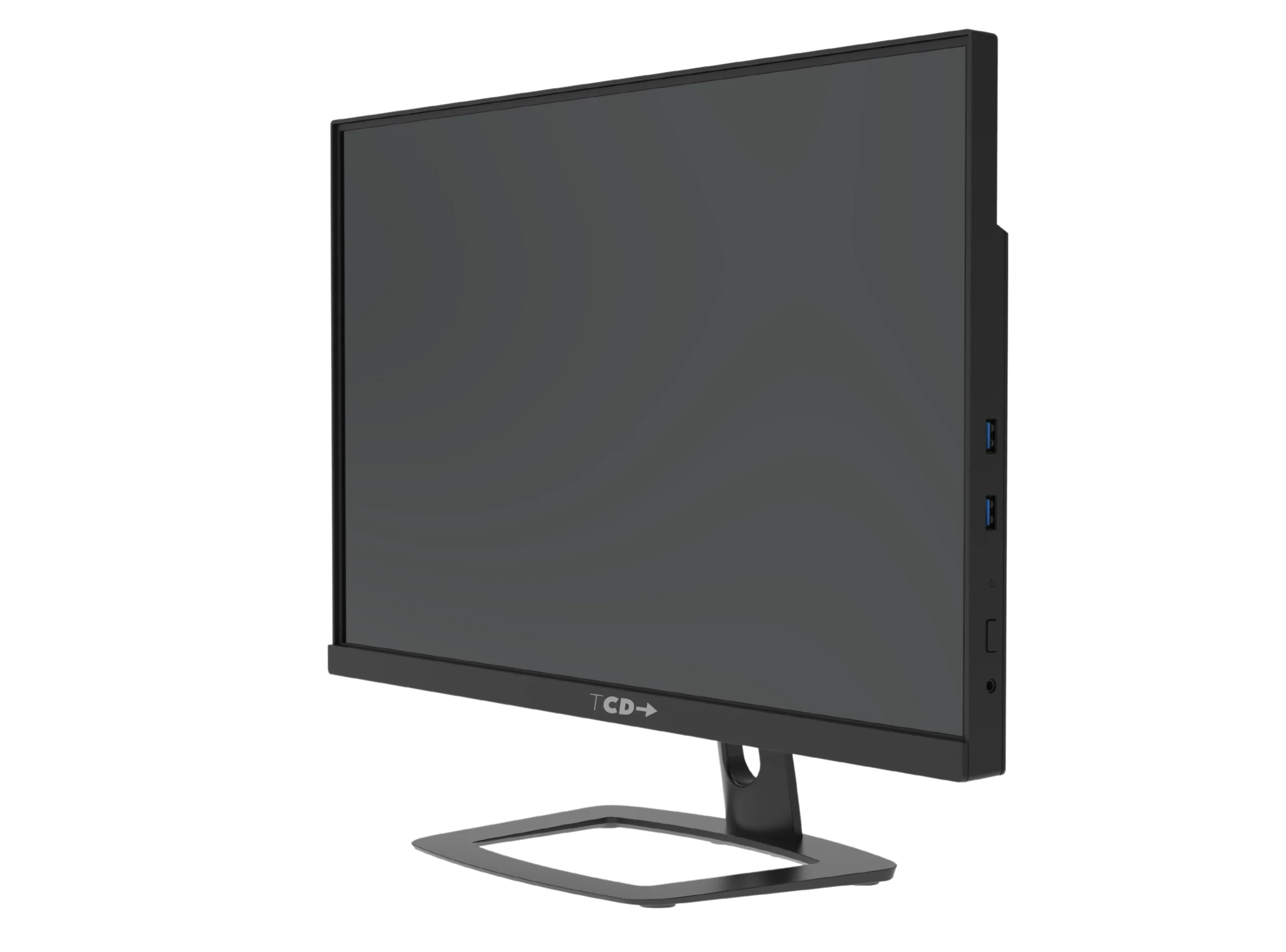

front 3d view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

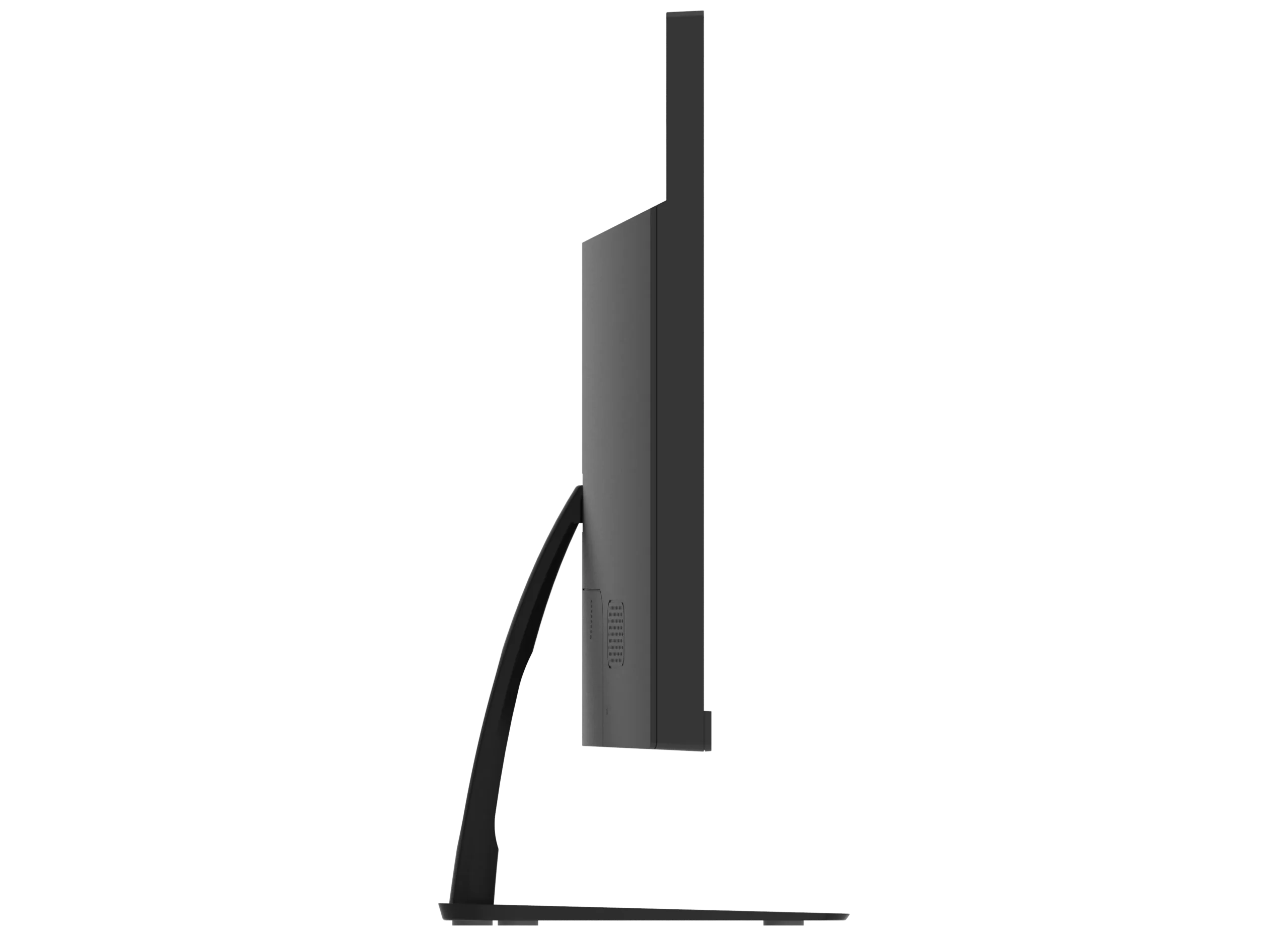

side view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

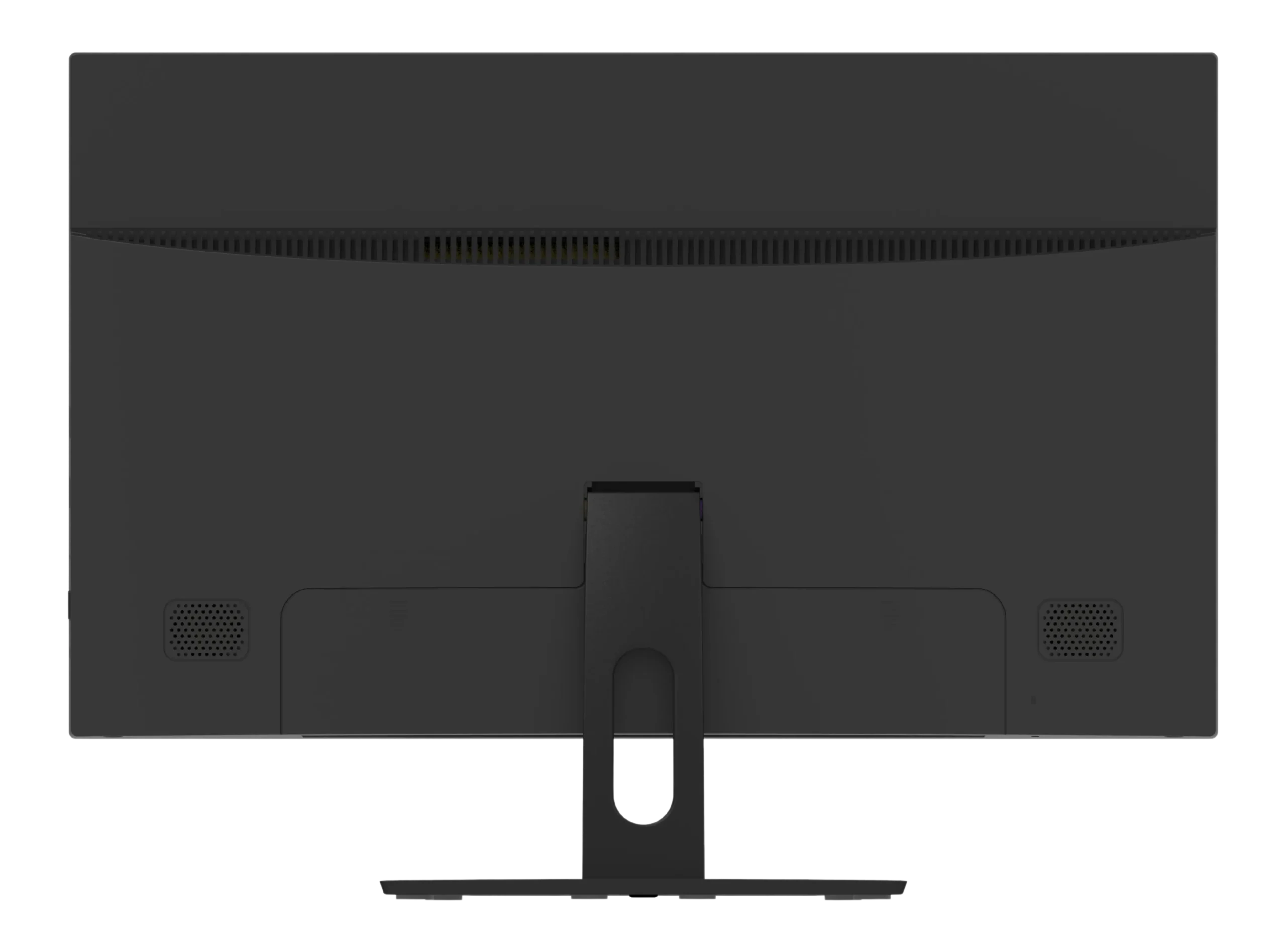

back view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

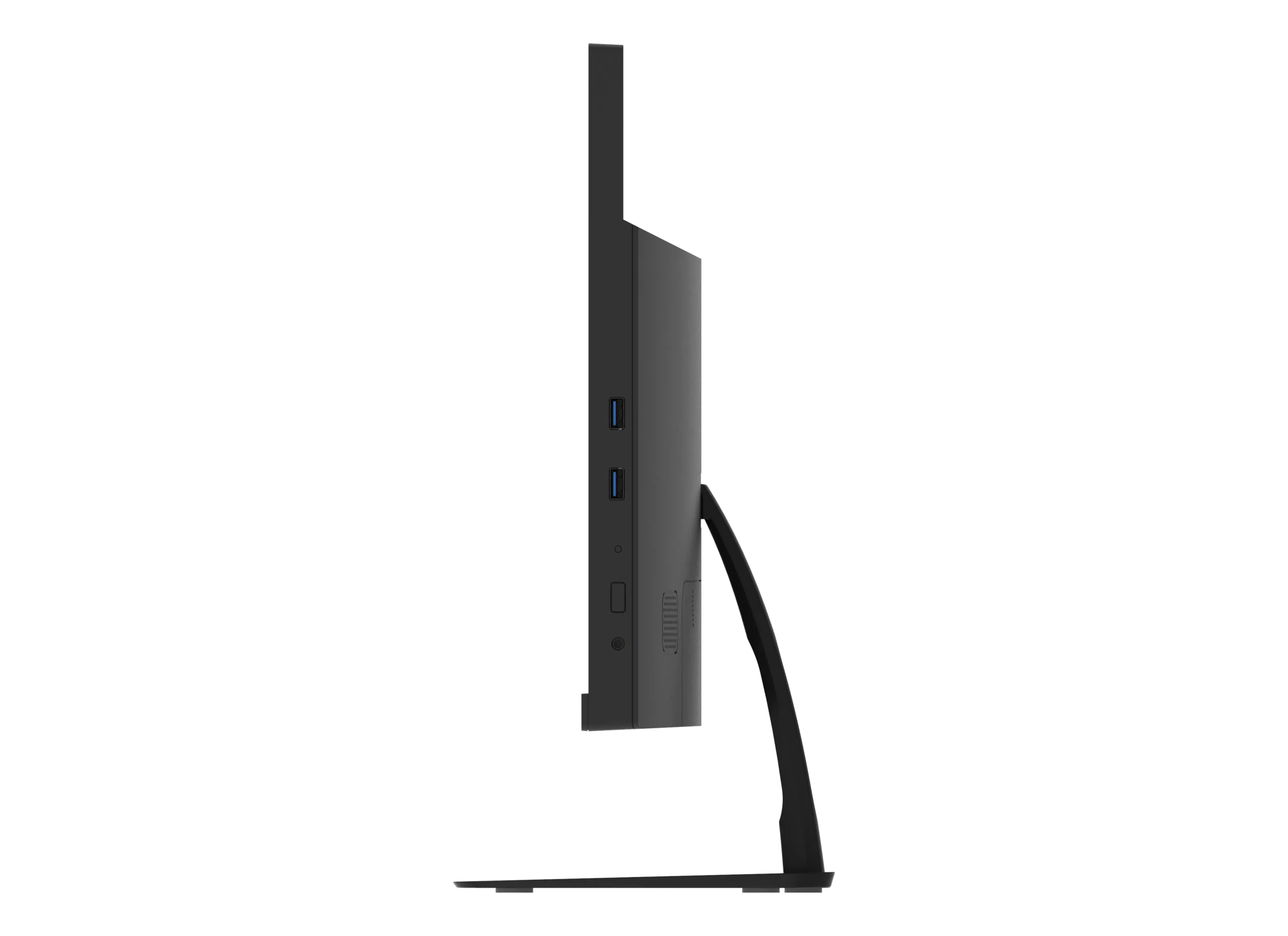

side view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

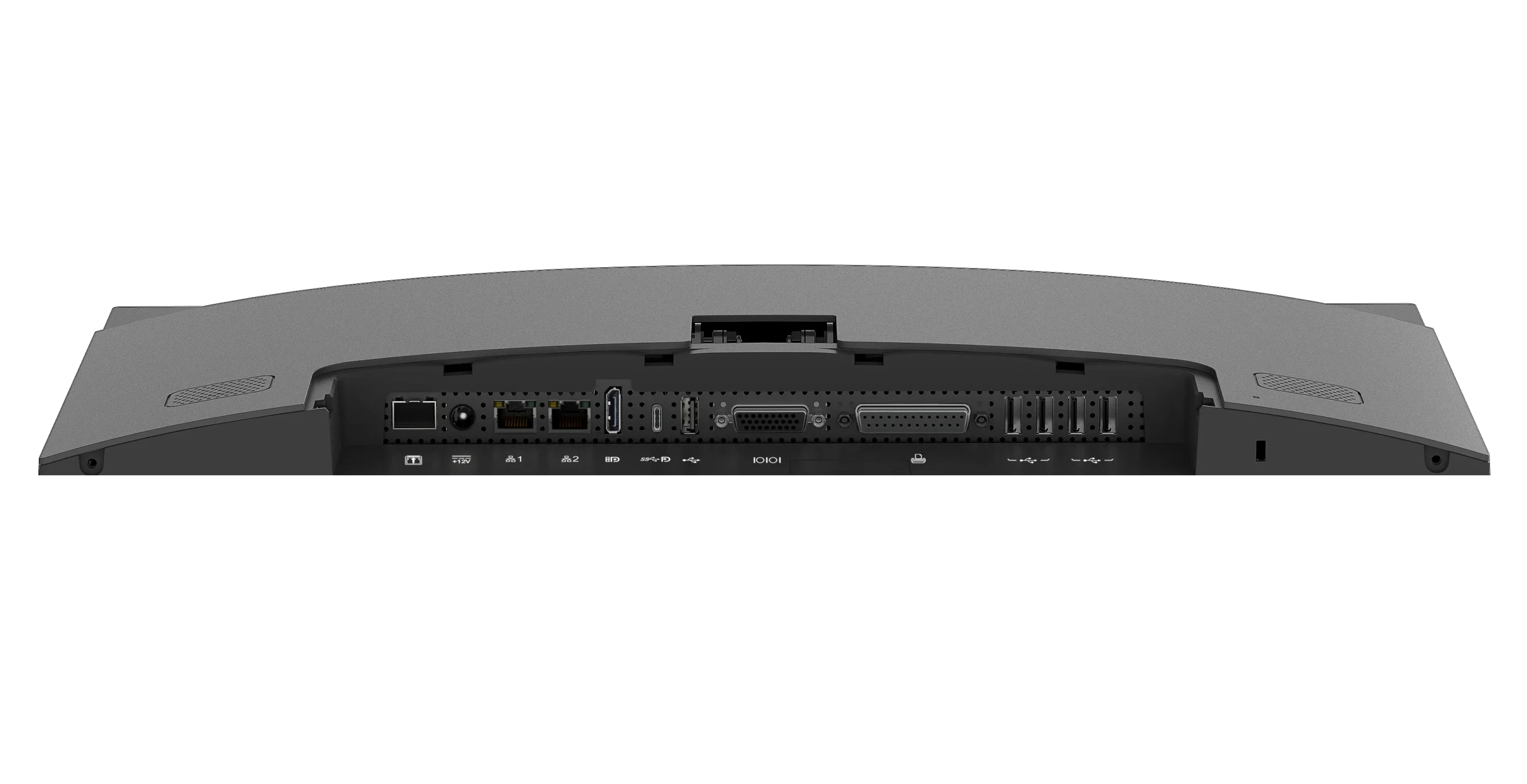

bottom view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

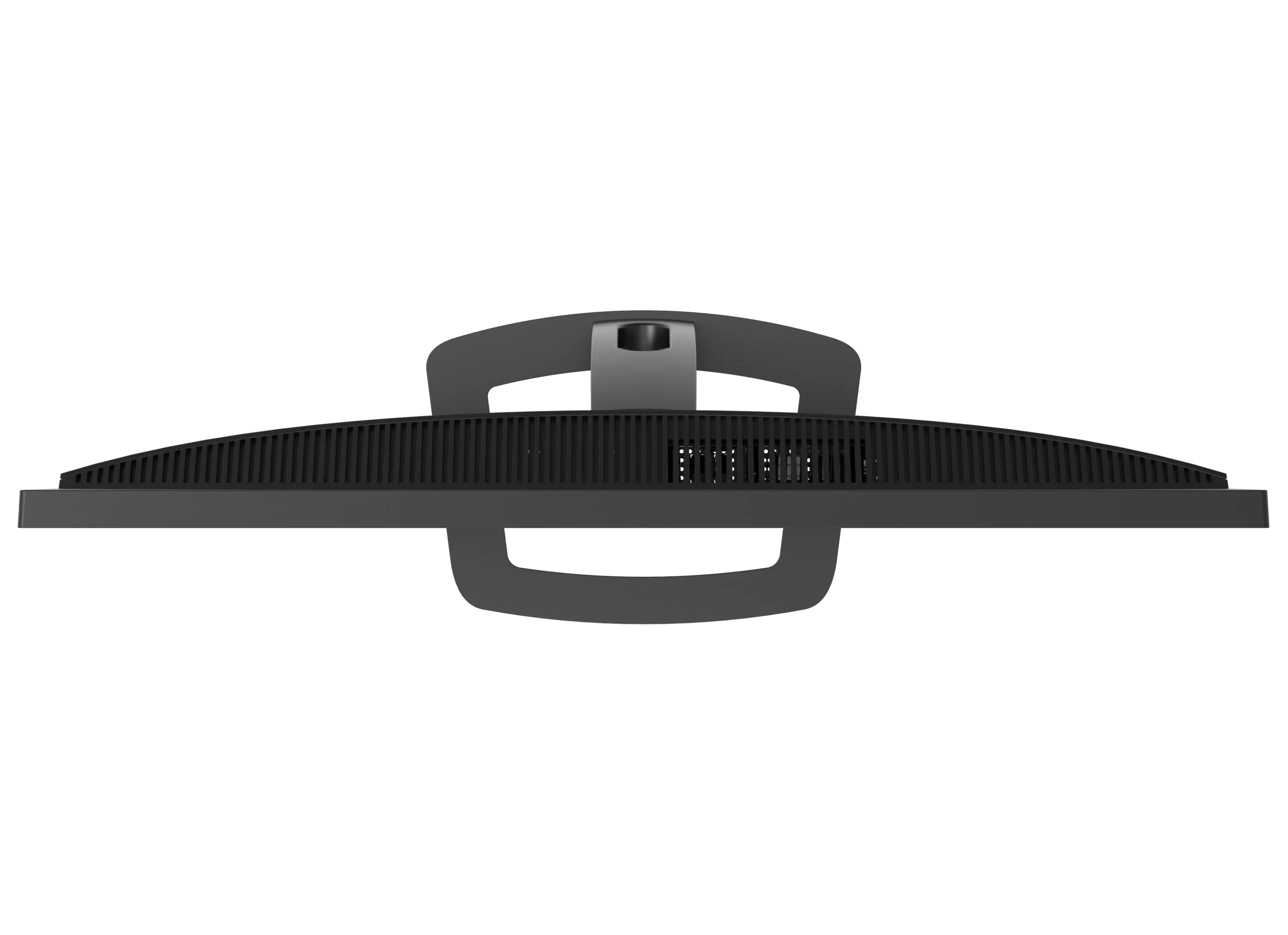

top view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

The TCD AIO Series (001) brings endpoint and screen together in a single, clean footprint that replaces a traditional PC-plus-monitor setup. Powered by Intel’s Jasper Lake architecture and paired with a 21.5″ FHD display, it is designed for large-scale office, education, and task-based environments where simplicity, reliability, and centralized control matter most. Purpose-built for Citrix, Omnissa, and Microsoft virtual desktops, it delivers a consistent cloud-first experience without the complexity of full PCs.

  • 21.5″ integrated display
  • Fanless, low-power design
  • Ready for Citrix, Omnissa, and AVD

Simple, Secure, and VDI-Ready

Simple Deployment

  • Ships ready to use with minimal setup, allowing IT teams to provision and roll out devices quickly across sites without complex imaging or configuration.

Built for VDI

  • Native support for Citrix, Omnissa Horizon, and Microsoft virtual desktop environments ensures smooth, predictable performance in cloud and remote workspace deployments.

Enterprise-Grade Security

  • Windows 10 IoT Enterprise with TCD hardening features helps reduce attack surface and enables rapid system restoration in the event of malware or corruption.

Peripheral Flexibility

  • A rich mix of ports — including USB 3.0, USB 2.0, USB-C, serial, and parallel — supports both modern and legacy devices commonly used in specialized work environments.
Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools
Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools

Connectivity

Designed to support real-world office and clinical environments where both legacy and modern peripherals are still in use.

TCD AIO Series 001 all-in-one thin client connectivity image showing enterprise I/O ports for USB peripherals, dual-display support, audio, and Gigabit Ethernet networking in Citrix, Azure Virtual Desktop, and Omnissa Horizon environments.

Trusted by IT teams deploying AVD, Horizon, and Citrix across all sectors including banking, healthcare, and government.

Your IT strategy should never be limited by hardware. ThinClient Direct endpoints are validated and optimized for the leading OS and virtualization platforms.

parallels logo

Specifications

Processor Intel N5105 Quad-Core 2.0 GHz (Jasper Lake)
Operating System Rangee, IGEL, Unicon, Praim, Win 11/ Win 11 IoT, and others
Protocol Clients Citrix Workspace app, Microsoft Remote Desktop, Omnissa Horizon Client, and others
RAM 4GB, 8GB, 16GB DDR4
Storage 32-256GB mSATA
Screen 21.5″ LVDS, 1920 × 1080 @ 60Hz
Networking 1× RJ-45 (10/100/1000 Base-T)
USB 5× USB 2.0 (rear), 2× USB 3.0 (side)
Legacy Ports 1× Serial (expandable to 4), 1× Parallel
Audio 2-in-1 headphone/mic combo
Dimensions (with stand) 490 × 361 × 162 mm
Dimensions (without stand) 490 × 292 × 51 mm
Weight 3.85 kg
Power Adapter 100–240V AC, 50/60 Hz, 12V/5A DC
TDP 10W
Stand Vertical feet (standard)
Security Kensington anti-theft keyhole
Operating Temperature 0°C to 40°C
Relative Humidity 30% to 90% (non-condensing)

OPTIONAL UPGRADES

RAM

Expandable to 16GB DDR4

Storage

  • 1× M.2 (2280)
  • 1× SATA

Networking

Additional 1× RJ-45 (1Gb)

Display Outputs (optional):

  • 1× USB-C @ 4096 × 2160 @ 60Hz
  • 1× DisplayPort @ 4096 × 2160 @ 60Hz

Audio

Internal speaker

Wireless

M.2 Wi-Fi module

Security

TPM 2.0 module

WHO THIS MODEL IS FOR

The TCD AIO 001 is a strong fit for organizations that need:

  • A clean, space-saving all-in-one solution without separate PCs and monitors
  • Rapid, repeatable deployments across large user bases

  • Centralized management via TCMS

  • A secure, locked-down endpoint for regulated or shared environments
  • Support for both modern and legacy peripherals

How it compares to the TCD AIO Series 002:

The primary difference comes down to the processor. The AIO 001 uses an Intel N5105 Quad-Core 2.0GHz CPU, while the AIO 002 is built on Intel’s Alder Lake N200 platform. There are also subtle differences in the display design and overall form factor.

Both are designed for modern EUC environments, with the choice depending on how your team prefers to standardize across all-in-one endpoints.

front 3d view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel
side view of the TCD AIO Series 001 all in one thin client endpoint with integrated display and slim black bezel

Frequently Asked Questions

Yes — it is designed to operate across Citrix, Omnissa (Horizon), Azure Virtual Desktop, Windows 365, and other environments.

Yes. The device is OS-agnostic and supports multiple endpoint operating systems, including IGEL, Rangee, Unicon, Praim, Windows 11, Windows 11 IoT, and other compatible OS options.

Yes. It connects with major endpoint management platforms for simplified centralized management.

Yes — it uses passive convection cooling for silent, maintenance-free operation.

Yes — a 21.5″ 1920×1080 display is integrated into the unit.

Yes — RAM can be expanded to 16GB, and additional M.2 or SATA storage can be added.
