TCD 1 Series (002) — High-Output Thin Client for Modern EUC

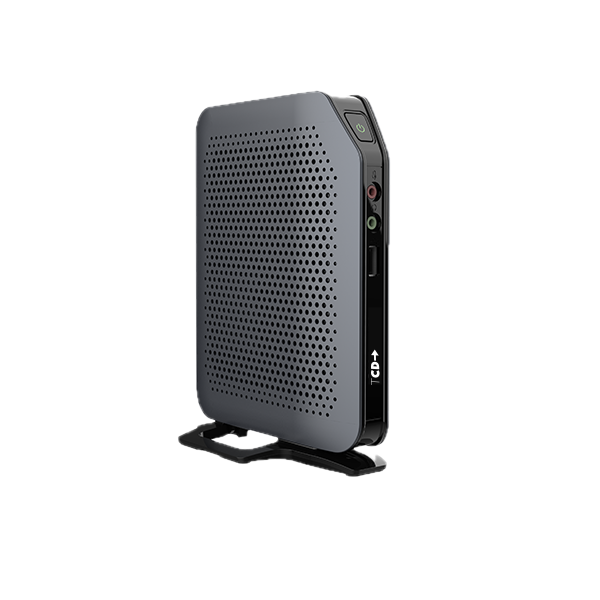

TCD 1 Series 002 thin client endpoint front right side

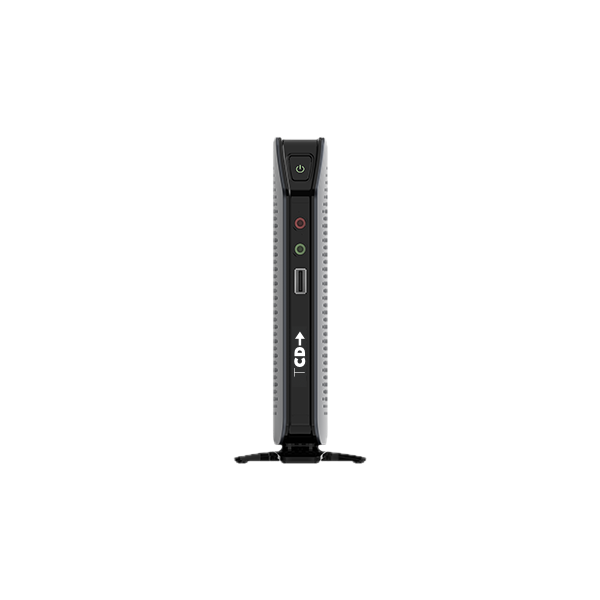

TCD 1 Series 002 thin client endpoint front side

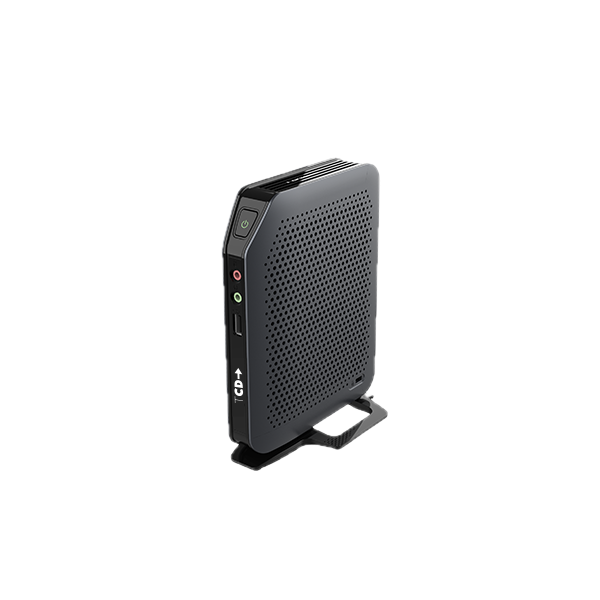

TCD 1 Series 002 thin client endpoint front left side

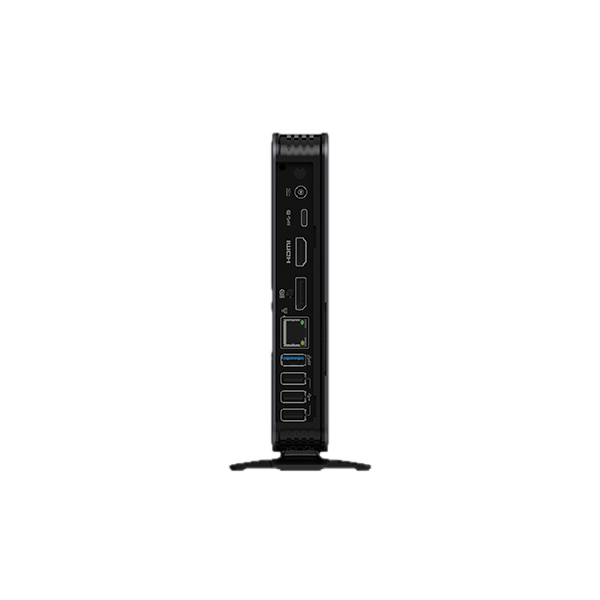

TCD 1 Series 002 thin client endpoint back side

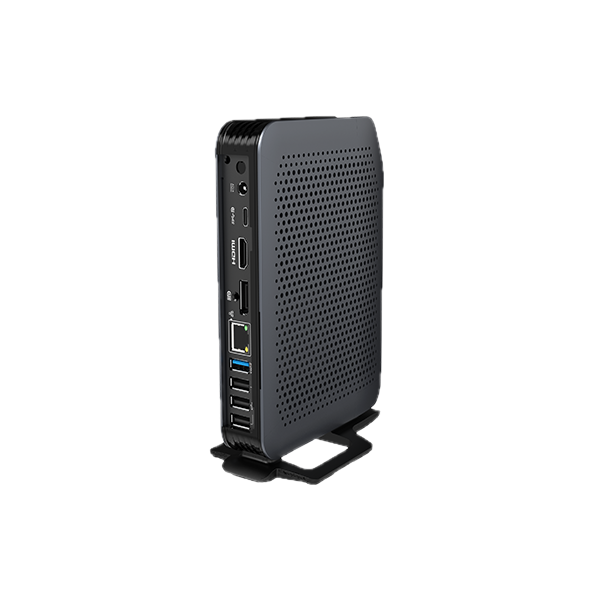

TCD 1 Series 002 thin client endpoint right back side

Built around Intel’s latest Atom-class processor, the TCD 1 Series (002) combines desktop-class responsiveness with a truly compact footprint. It is designed for teams that need stronger compute, faster I/O, and flexible display options across Citrix, Omnissa, and Azure Virtual Desktop environments — all while remaining centrally manageable and enterprise-ready.

  • Ultra-compact 0.7L chassis
  • USB 3.2 Gen 2 up to 10Gbps
  • Triple 4K display support

Built for Real EUC Workloads

Built for Real EUC Workloads

Powerful Performance

  • Driven by Intel’s N200 processor, delivering responsive performance across everyday and professional office applications.

  • Enhanced integrated graphics enable noticeably smoother visual performance for multitasking and virtual desktop use.

Tiny but Mighty

  • A 0.7L mini chassis that keeps desks clean while still packing enterprise-grade capability.
  • A rich set of I/O options — 6 USB ports, 3 display outputs, and 1 GbE network port — to support diverse workplace setups.
  • Native support for three simultaneous displays at 4K resolution for productive multi-screen workflows.

Fast I/O Throughput

  • Dual USB 3.2 Gen 2 ports capable of transfer speeds up to 10Gbps for modern peripherals and storage.
  • A full-function USB-C interface that supports data, display output, and fast charging in a single connection.

Unified Management

  • Compatible with many management tools for centralized, remote control of device fleets.

  • Preloaded with the preferred operating system.

Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools
Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools

Connectivity

Designed to integrate cleanly with modern workstation peripherals, displays, and enterprise networks.

TCD 1 Series 002 thin client front and rear ports including USB 3.2, HDMI, DisplayPort, RJ45, Type-C, audio jacks, and power input for enterprise workstation integration

Trusted by IT teams deploying AVD, Horizon, and Citrix across all sectors including banking, healthcare, and government.

Your IT strategy should never be limited by hardware. ThinClient Direct endpoints are validated and optimized for the leading OS and virtualization platforms.

parallels logo

Specifications

Processor Intel N200, quad core 1.0GHz, up to 3.7GHz
Operating System Rangee, IGEL, Unicon, Praim, Win 11/ Win 11 IoT, and others
Protocols Citrix Workspace app, Omnissa Horizon Client (Blast Extreme), Microsoft RDP, and others
RAM 4GB, 8GB, 16GB DDR4 (upgradable)
Storage 32-256GB mSATA
Display Outputs 1× DisplayPort, 1× HDMI, 1× USB-C
Max Resolution 3840 × 2160 @ 60Hz (DP, HDMI, and USB-C)
Networking 1× RJ-45 (10/100/1000 Mbps)
USB 3× USB 2.0, 2× USB 3.2
Audio Line-out × 1, Mic-in × 1
Dimensions (no stand) 131 × 31.5 × 167 mm
Dimensions (with stand) 131 × 76 × 178 mm
Net Weight 0.54 kg
Packaging Dimensions 488 × 108 × 256 mm
Packaging Weight 2.1 kg
Power Adapter 100–240V AC, 50/60 Hz, 12V/3A DC
Power Consumption < 20W
Mounting Vertical stand and VESA bracket
Security Kensington anti-theft keyhole
Operating Temperature 0°C to 40°C
Relative Humidity 30% to 90% (non-condensing)

OPTIONAL UPGRADES

RAM

Expandable to 16GB DDR4

Storage

Up to 1TB SSD

M.2 Expansion

One slot for Wi-Fi module

TPM Module

Optional hardware security add-on

WHO THIS MODEL IS FOR

The TCD 1 Series 002 is well suited for organizations that need:

  • Higher processing headroom for more demanding virtual desktops
  • Faster USB performance for modern peripherals or storage devices
  • Native HDMI output for broader monitor compatibility

  • A Linux-based thin-client option like Rangee OS

  • Centralized management at scale via TCMS

How it compares to the TCD 1 Series 001:

The main distinction between the two models centers on the processor. The 1 Series 002 runs on Intel’s Alder Lake N200 platform, while the 1 Series 001 uses an Intel N5105 Quad-Core 2.0GHz CPU.

Both support modern EUC environments, with the decision coming down to how you want to standardize performance and endpoint consistency across your deployment.

WHO THIS MODEL IS FOR

TCD 1 Series 002 thin client endpoint front right side
TCD 1 Series 002 thin client endpoint back side

Frequently Asked Questions

Yes. It is designed to operate across Citrix, Omnissa (Horizon), Azure Virtual Desktop, Windows 365, and other environments.

Yes. The device is OS-agnostic and supports multiple endpoint operating systems, including IGEL, Rangee, Unicon, Praim, Windows 11, Windows 11 IoT, and other compatible OS options.

 Yes — via many management tools, and it’s also compatible with third-party EUC management platforms.

Yes — using DisplayPort, HDMI, and USB-C simultaneously, each at up to 4K @ 60Hz.

Yes — RAM can be expanded to 16GB and storage up to 1TB SSD.
