TCD 1 Series (001) — Compact Thin Client Built for High-Performance EUC

TCD 1 Series 001 thin client endpoint front left side

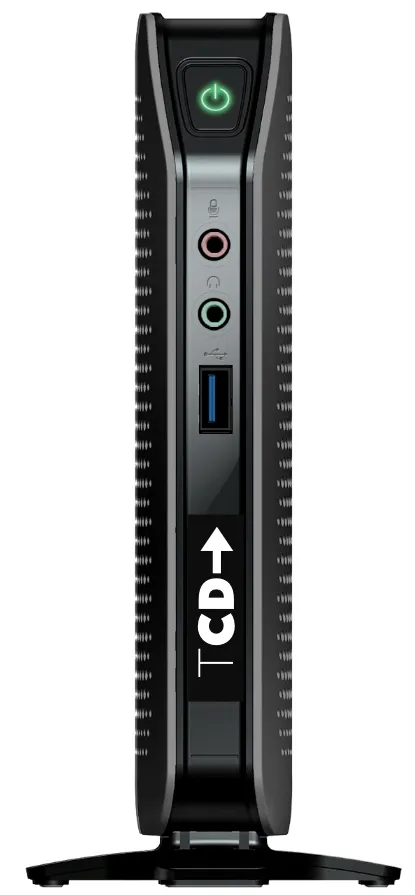

TCD 1 Series 001 thin client endpoint front side animated

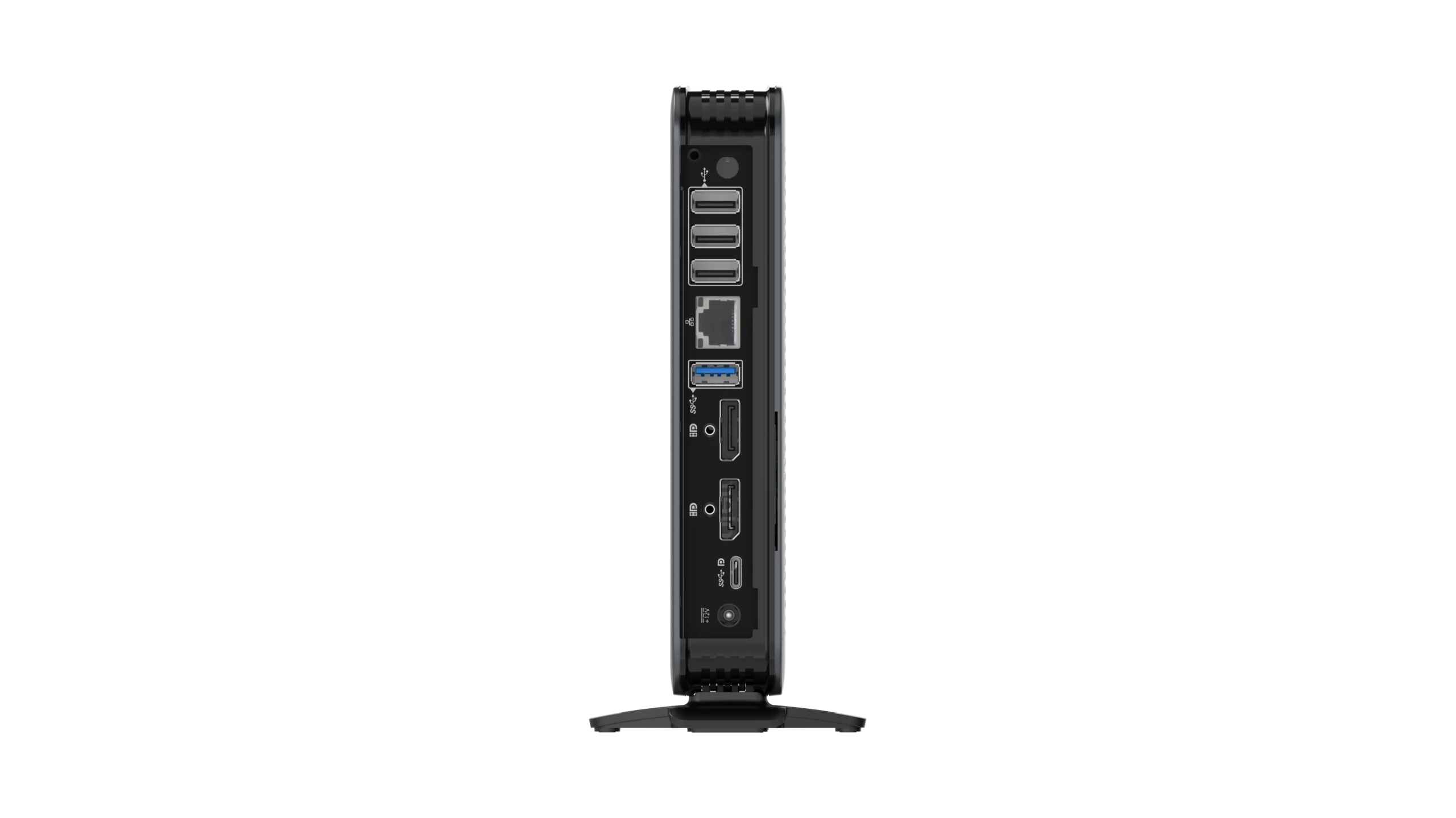

TCD 1 Series 001 thin client endpoint back side

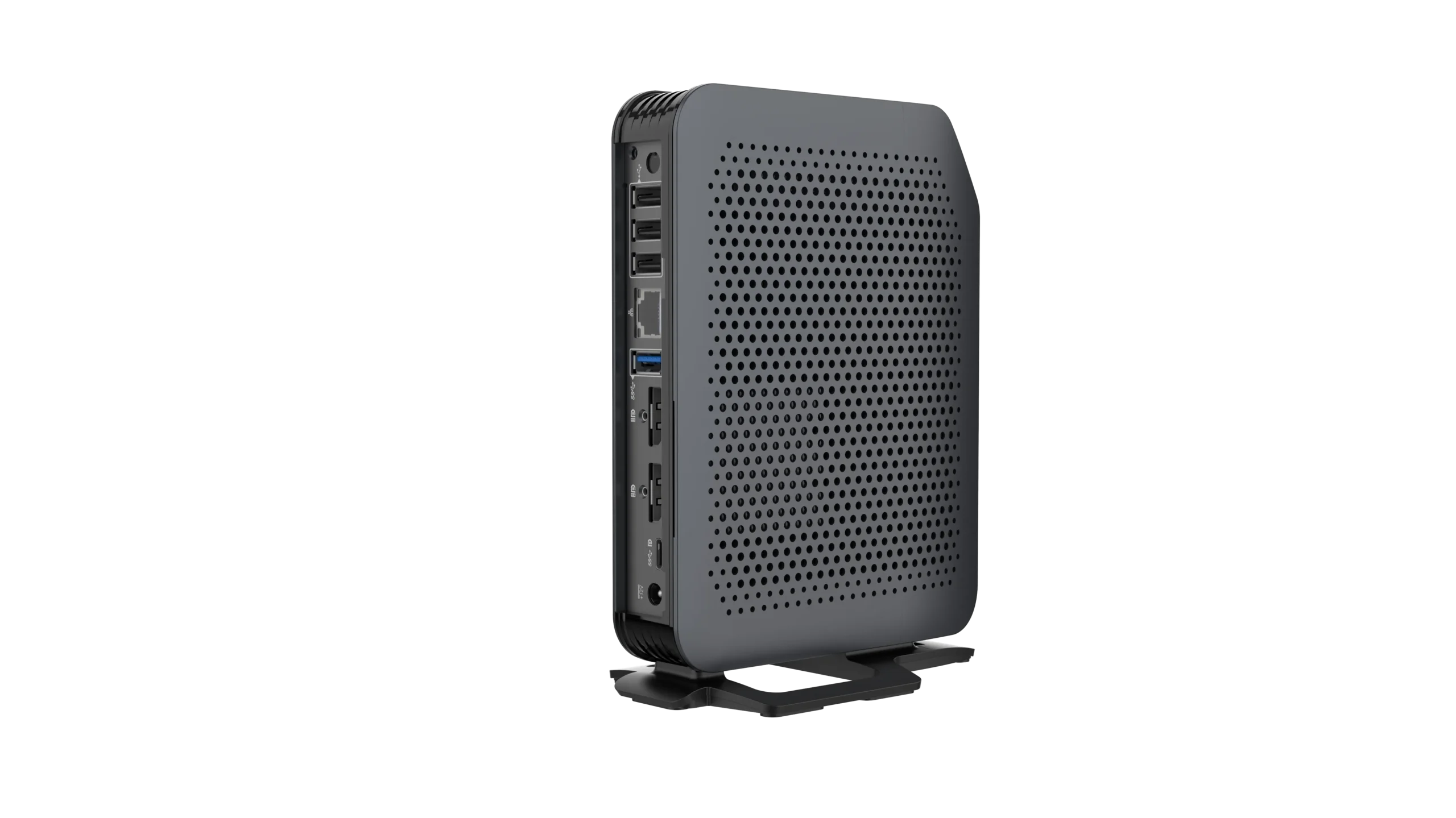

TCD 1 Series 001 thin client endpoint back right side

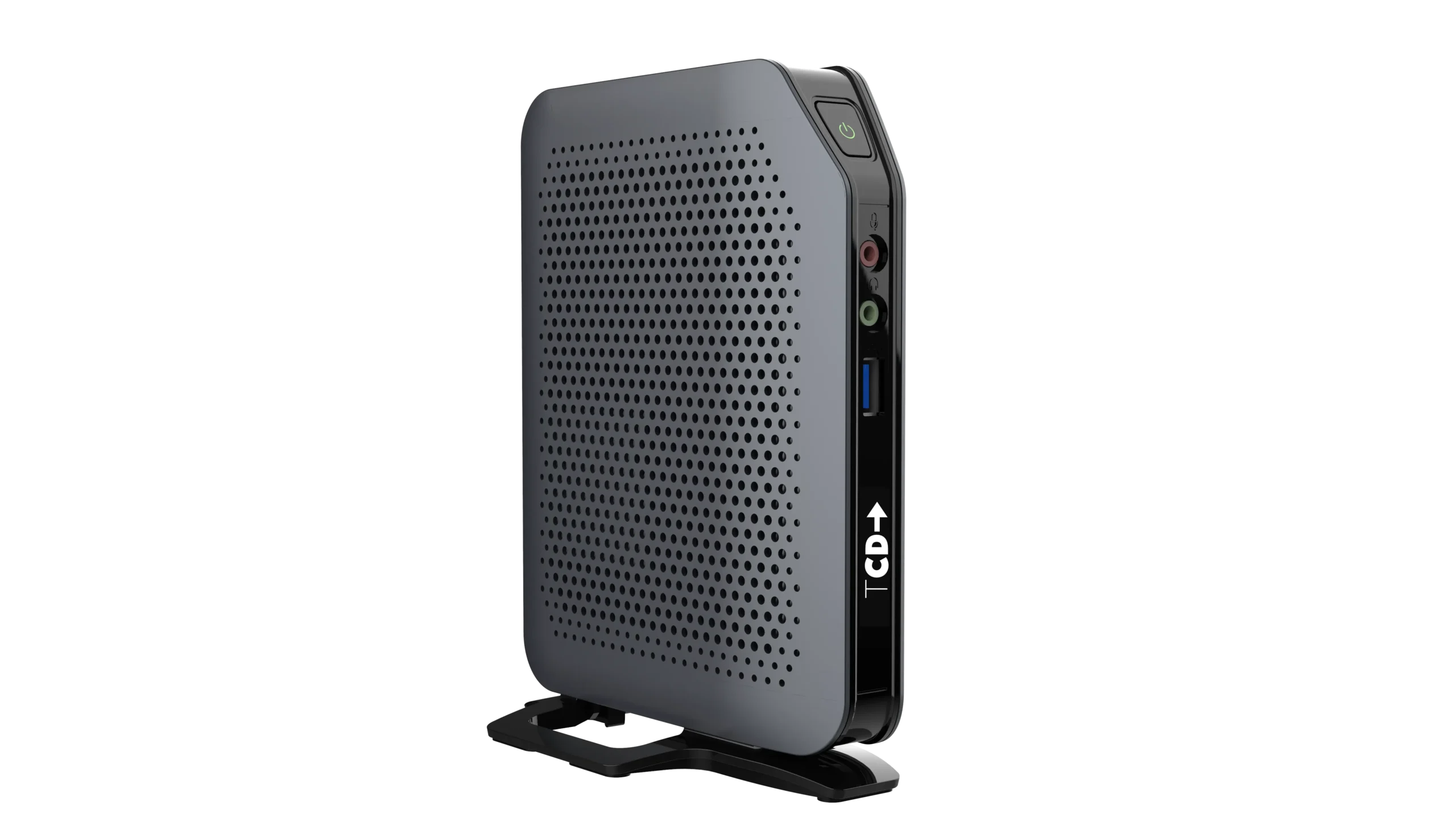

TCD 1 Series 001 thin client endpoint front right side

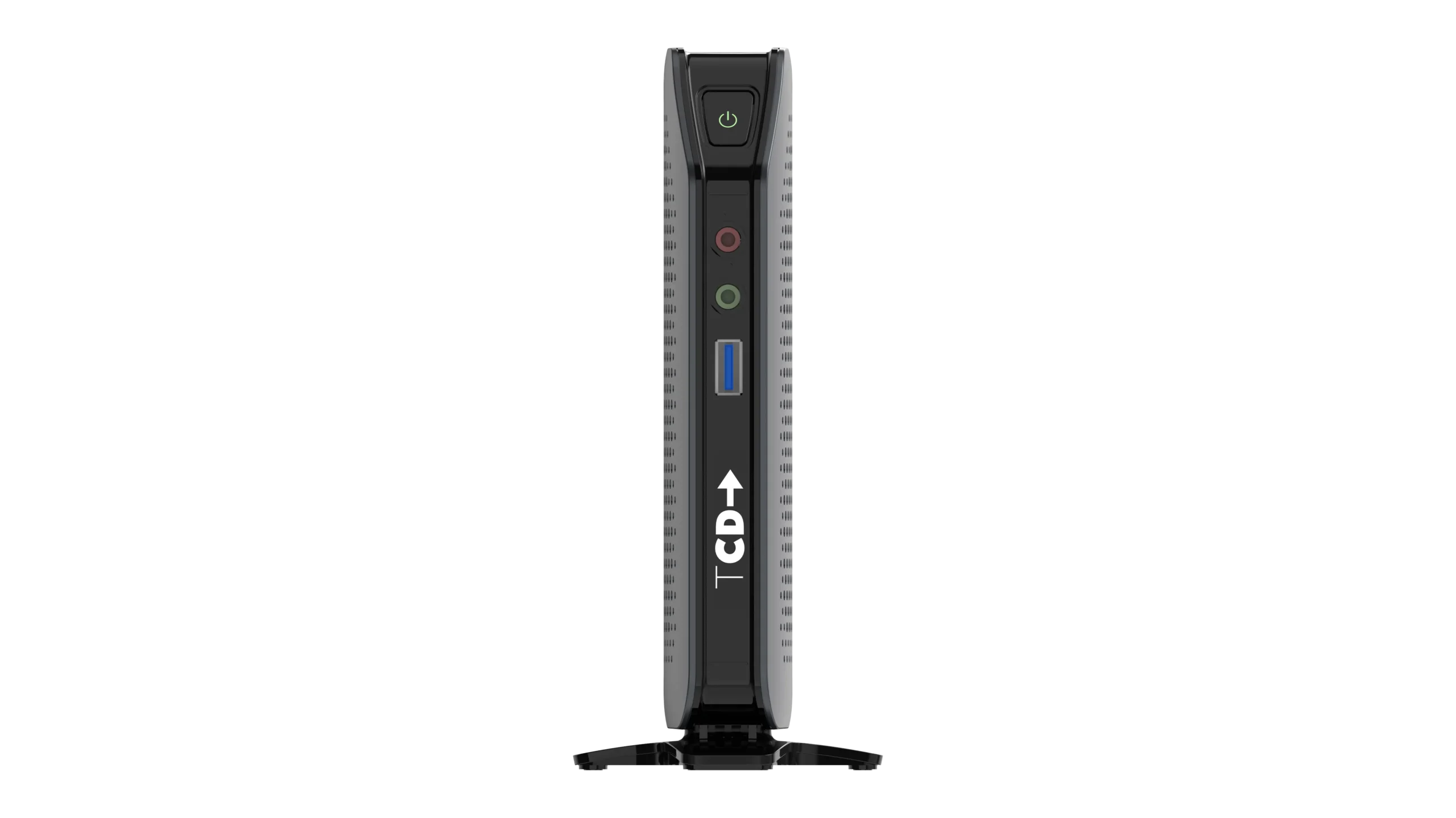

TCD 1 Series 001 thin client endpoint front side

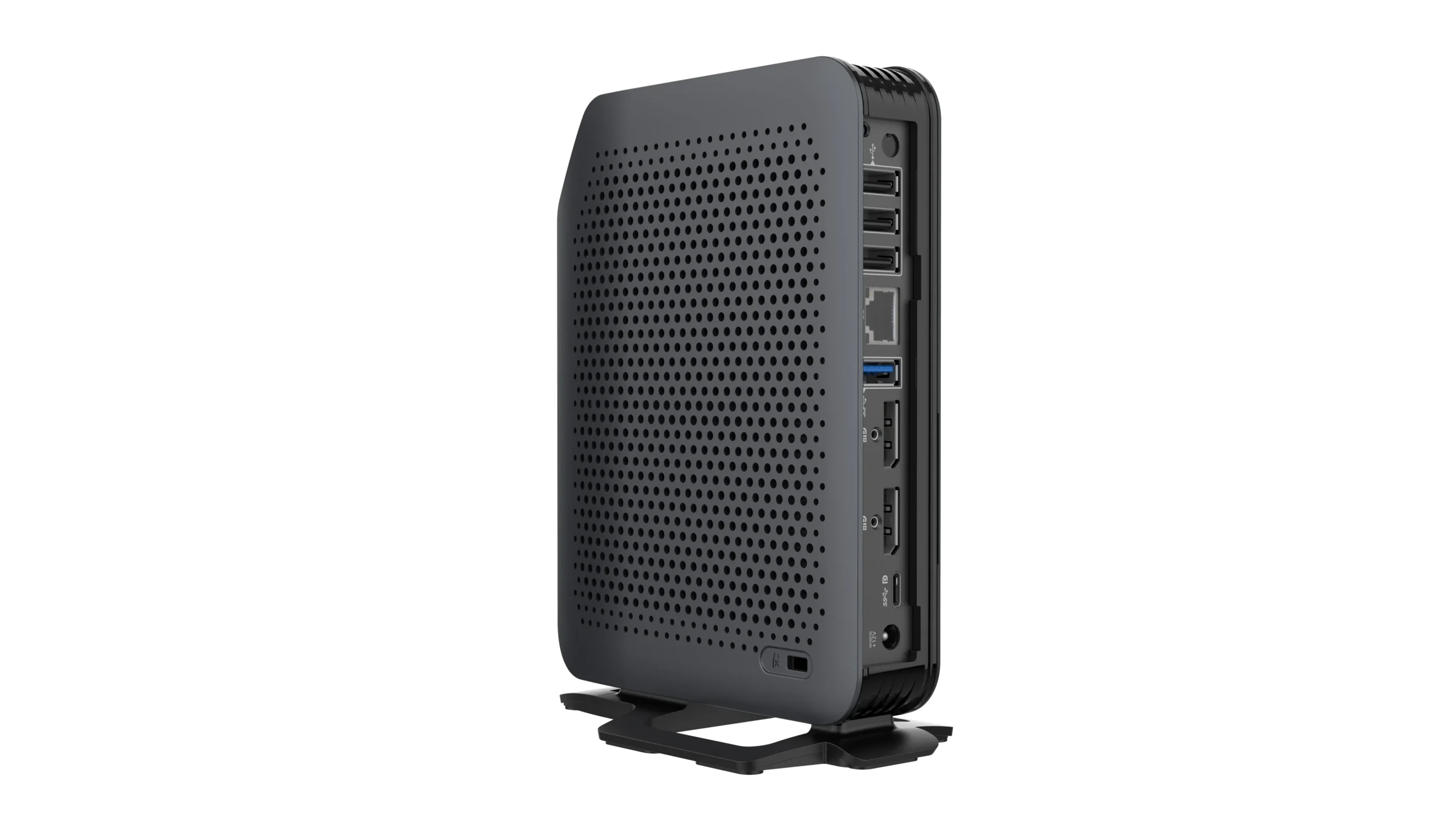

TCD 1 Series 001 thin client endpoint left back side

Powered by Intel N5105, the TCD 1 Series (001) is designed for CPU-intensive and graphics-demanding workloads in Citrix, Omnissa, and Azure Virtual Desktop environments. It delivers smooth, reliable performance in both standalone and virtual desktop use cases — in a compact, fanless design built for enterprise IT.

  • Fanless, silent operation
  • < 10W power consumption

  • Triple 4K display

Built for Real EUC Workloads

Triple Display, True 4K

Run three high-resolution displays simultaneously via two DisplayPort outputs and one USB-C port, each capable of 4K at 60Hz. Ideal for traders, analysts, clinicians, and knowledge workers who need more screen real estate without performance compromise.

Flexible M.2 Expansion

An M.2 slot supports high-speed storage or Wi-Fi expansion, giving IT teams the flexibility to adapt the device as connectivity and performance requirements evolve.

Multi-Protocol VDI Support

Native support for Citrix HDX/ICA, Omnissa PCoIP, and Microsoft RDP ensures seamless integration into mixed or evolving EUC environments without forcing a single platform choice.

Trusted Platform Module

Optional hardware-based security that strengthens device integrity and protects sensitive data at the endpoint, supporting stronger zero-trust and compliance postures.

Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools
Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools

Connectivity

Designed to fit seamlessly into existing workstation setups with support for modern peripherals, monitors, and network environments.

TCD 1 Series 001 thin client front and rear ports including USB 3.0, USB 2.0, DisplayPort, RJ45, audio jacks, and power input for enterprise setups

Trusted by IT teams deploying AVD, Horizon, and Citrix across all sectors including banking, healthcare, and government.

Your IT strategy should never be limited by hardware. ThinClient Direct endpoints are validated and optimized for the leading OS and virtualization platforms.

parallels logo

Specifications

Processor Intel N5105, quad core 2.0Ghz
Operating System Rangee, IGEL, Unicon, Praim, Win 11/ Win 11 IoT, and others
Protocols Citrix Workspace app, Omnissa Horizon Client (Blast Extreme), Microsoft RDP, and others
RAM 4GB, 8GB, 16GB DDR4
Storage 32-256GB mSATA
Display Outputs 2× DisplayPort, 1× USB-C
Max Resolution DP:4096 x 2160 @60Hz, Type-C :4096 x 2160 @60Hz
Networking 1× RJ-45 (10/100/1000 Mbps)
USB 3× USB 2.0, 2× USB 3.0
Audio Line-out × 1, Mic-in × 1
Dimensions (no stand) 131 × 31.5 × 167 mm
Dimensions (with stand) 131 × 76 × 178 mm
Net Weight 0.532 kg
Power Adapter 100–240V AC, 50/60 Hz, 12V/3A DC
Power Consumption < 10W
Mounting Vertical stand and VESA bracket
Security Kensington anti-theft keyhole
Operating Temperature 0°C to 40°C
Relative Humidity 30% to 90% (non-condensing)

OPTIONAL UPGRADES

RAM

Upgradeable to 16GB DDR4

M.2 Expansion

SATA or PCIe storage; optional Wi-Fi module

TPM Module

Optional hardware security add-on

Mounting

VESA bracket for behind-monitor or under-desk installation

WHO THIS MODEL IS FOR

The TCD 1 Series 001 is a strong fit for teams that need:

  • Reliable performance for multi-monitor workflows
  • Low power consumption and silent operation
  • Standardized, centrally managed endpoints
  • A secure, purpose-built alternative to overpowered PCs
  • A compact device that keeps desks clean and efficient

How it compares to the TCD 1 Series 002:

The primary difference comes down to the processor. The TCD 1 Series 001 uses an Intel N5105 Quad-Core 2.0GHz CPU, while the 1 Series 002 is built on Intel’s Alder Lake N200 platform.

Both are designed for modern EUC environments, with the choice depending on how your team prefers to standardize across endpoints.

TCD 1 Series 001 thin client endpoint front left side
TCD 1 Series 001 thin client endpoint front side

Frequently Asked Questions

Yes. It is built to work across Citrix, Omnissa (Horizon), Azure Virtual Desktop, Windows 365, and other environments.

Yes. The device is OS-agnostic and supports multiple endpoint operating systems, including IGEL, Rangee, Unicon, Praim, Windows 11, Windows 11 IoT, and other compatible OS options.

Yes. It integrates with various management tools, as well as leading third-party EUC management tools.

Yes — it uses passive convection cooling for silent, maintenance-free operation.

Yes — via two DisplayPorts and one USB-C output, all capable of 4K at 60Hz.

Yes — up to 16GB DDR4.
