TCD 2 Series (001) — Enterprise-Class Thin Client for Demanding Workstations

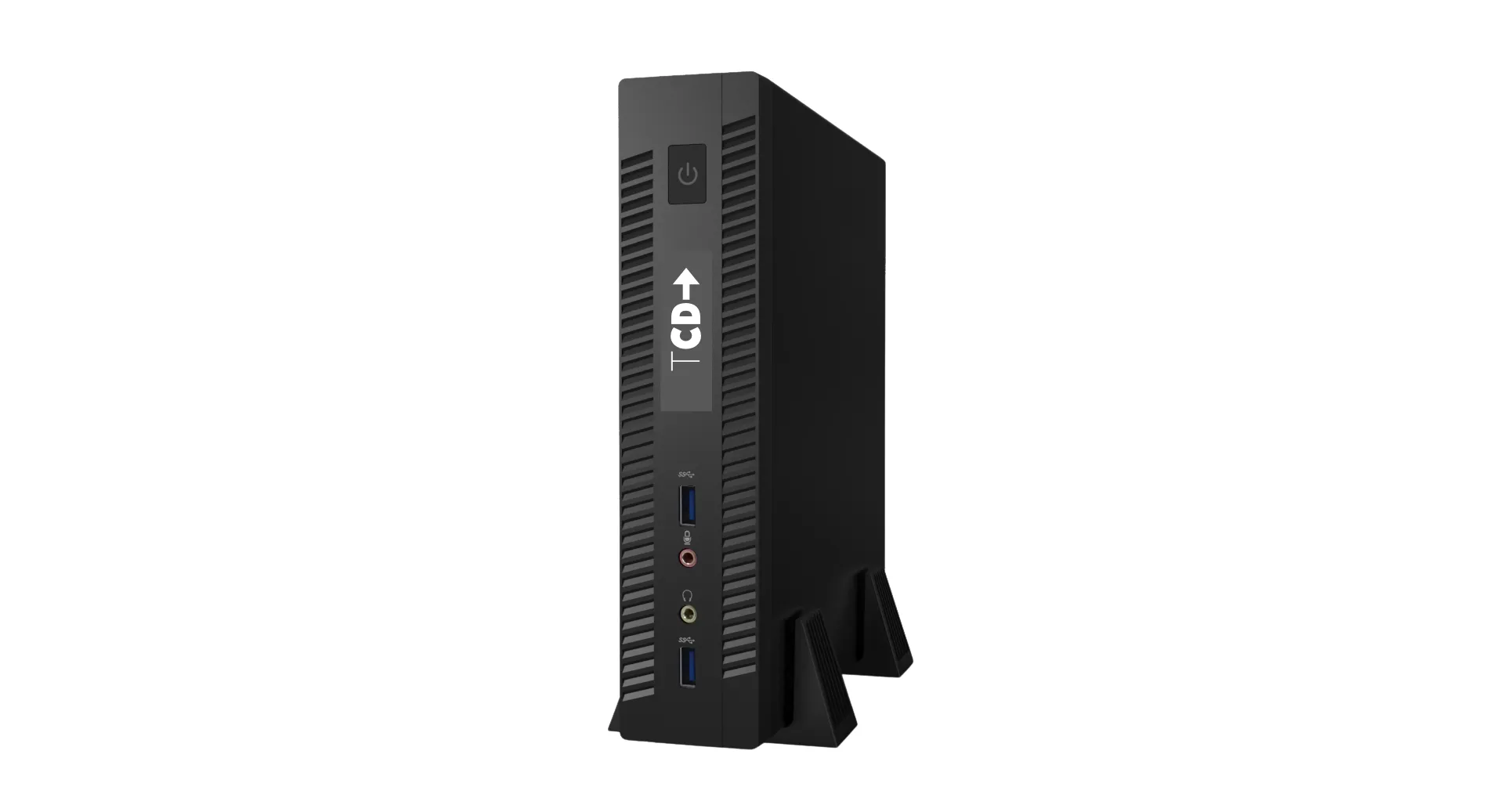

TCD 2 Series 001 thin client endpoint front left side
TCD 2 Series 001 thin client endpoint front left side

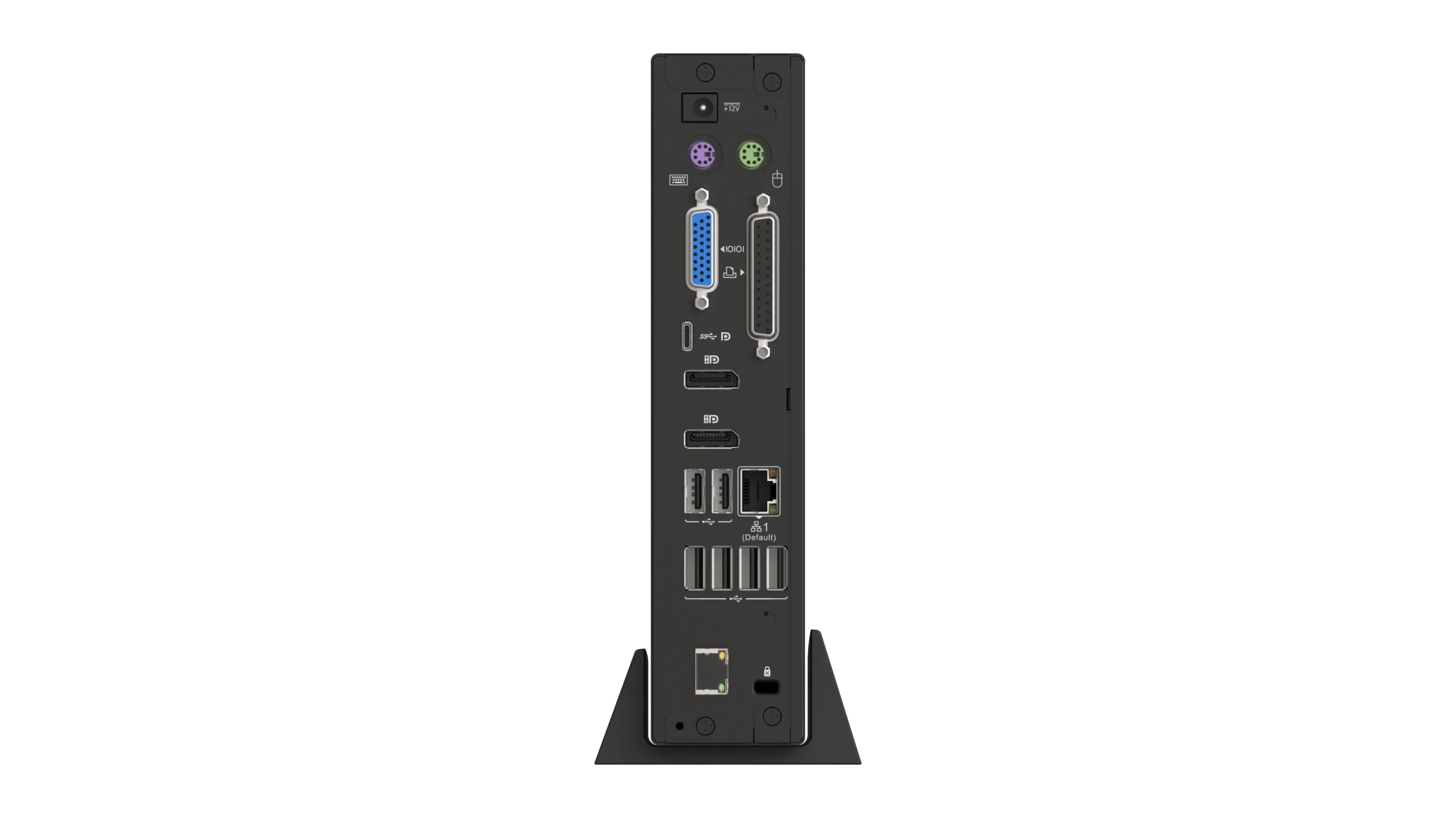

TCD 2 Series 001 thin client endpoint back side

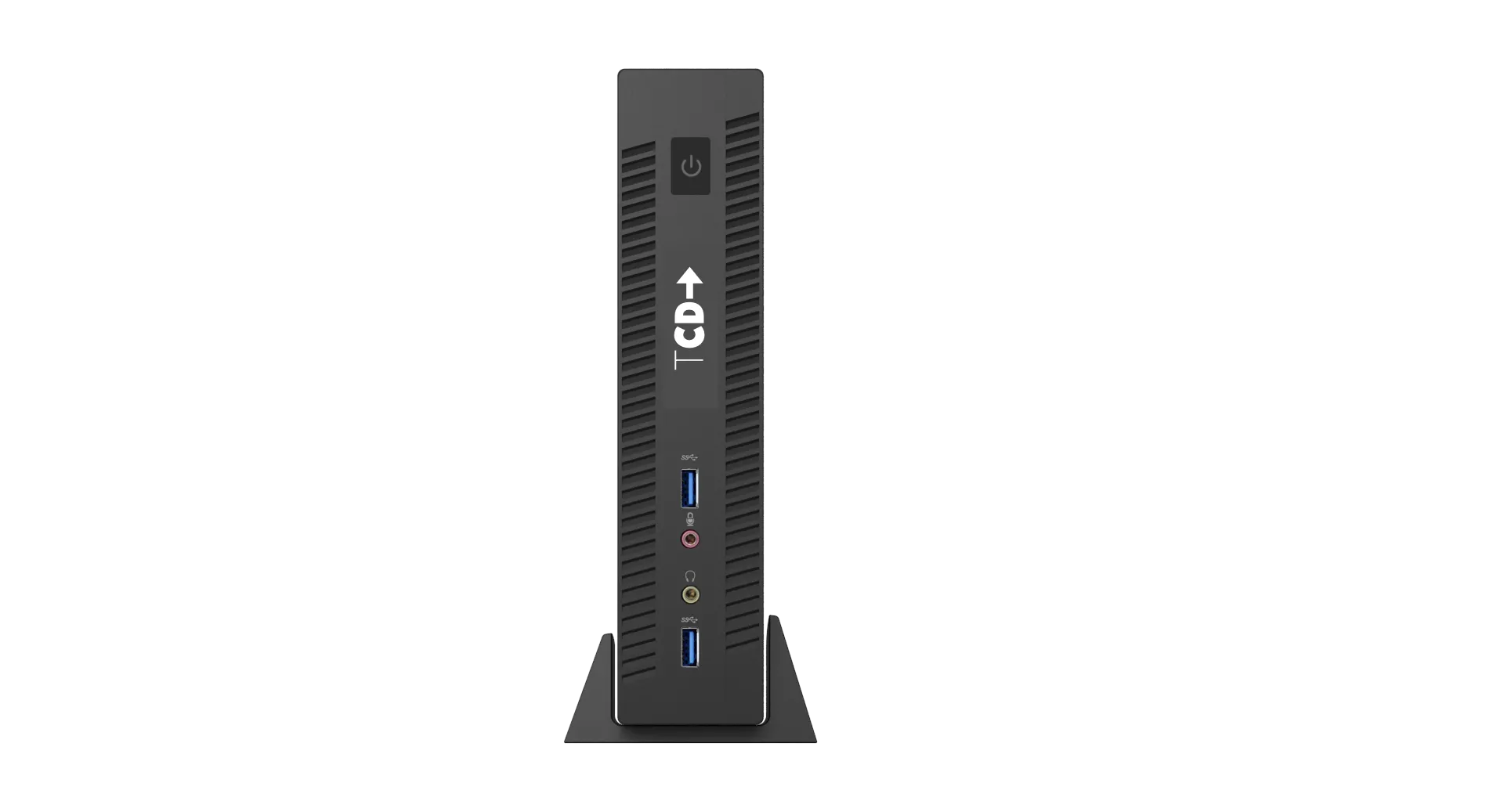

TCD 2 Series 001 thin client endpoint front

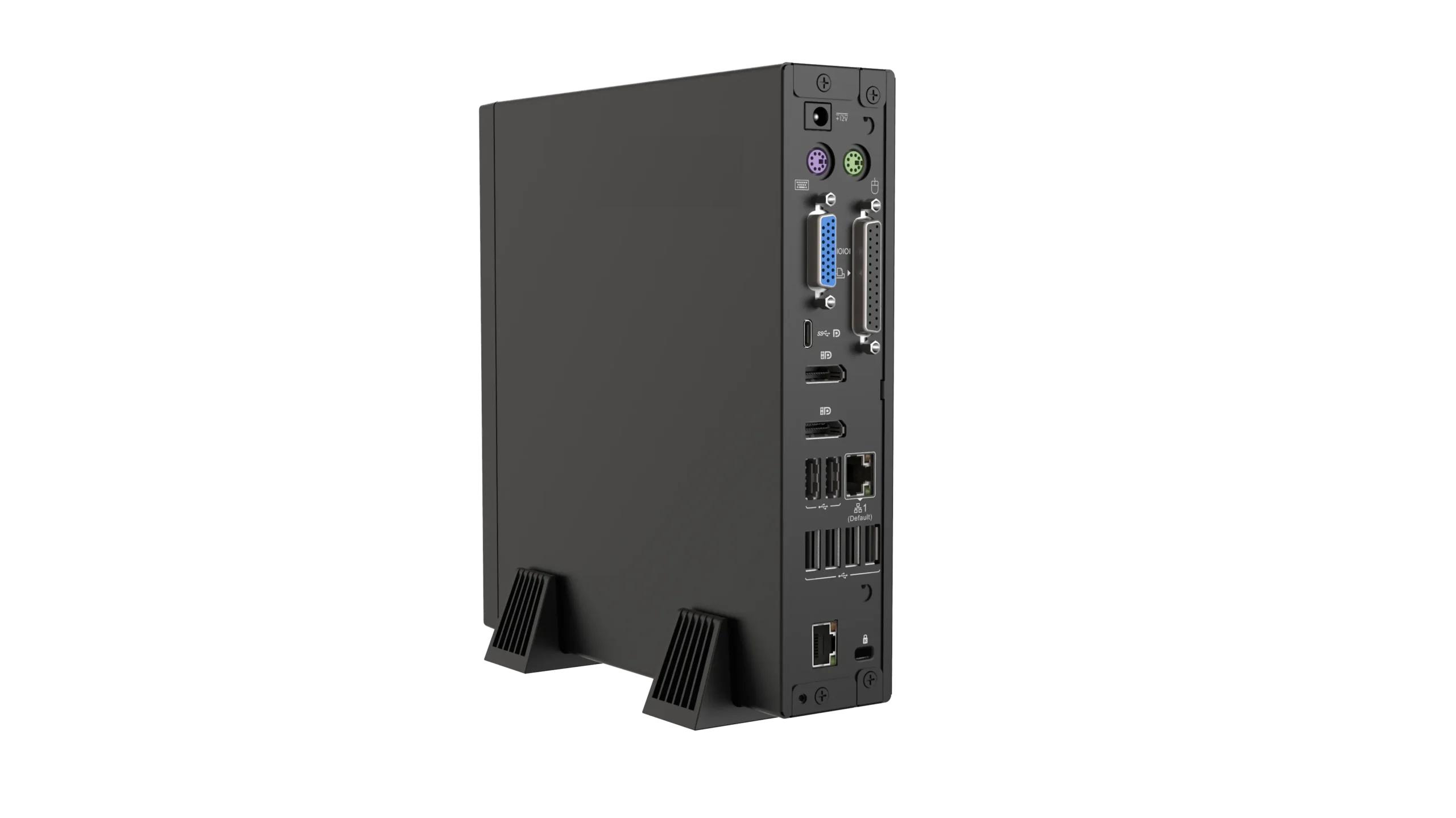

TCD 2 Series 001 thin client endpoint back left side

Powered by Intel’s N5105 Jasper Lake platform, the TCD 2 Series (001) is designed to deliver reliable desktop-level performance for education, enterprise, and professional workstation environments. With native support for Citrix, Omnissa, and Microsoft RDP, it is built to fit seamlessly into cloud and VDI deployments — while offering dual DisplayPort plus full-function USB-C for productive multi-screen setups.

  • Dual Networking Options

  • Triple 4K display support
  • Fanless, silent operation

Enterprise Performance, Enterprise Control

Real 4K Across Multiple Displays

  • Two DisplayPort outputs and a full-function USB-C port each support up to 4K resolution, ensuring crisp visuals across modern office and VDI use cases.

Extensive Connectivity for Enterprise Desks

  • A broad mix of ports — including USB 3.0, USB 2.0, serial, and parallel — supports legacy and modern peripherals side by side, reducing the need for adapters or replacements.

Trusted Platform Module

  • Optional hardware-based protection that strengthens endpoint integrity and helps organizations maintain stronger security postures.

Triple-Display Productivity

  • Native support for three simultaneous monitors via 2× DisplayPort and USB-C, enabling efficient multi-tasking for analysts, clinicians, and power users.

Dual Gigabit Networking

  • Two 1Gb Ethernet interfaces provide resilient connectivity and faster data throughput for enterprise and educational environments.

Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools
Diagram showing ThinClient Direct compatibility across the endpoint stack including OS, reporting, security, unified communications, peripherals, and VDI platforms with integrations such as Citrix, Microsoft, IGEL, Unicon, Zoom, Teams, and other enterprise tools

Connectivity

Built to integrate smoothly into both modern and legacy workstation environments.

TCD 2 Series 001 thin client front and rear ports including USB 3.0, USB 2.0, DisplayPort, Type-C, RJ45, serial, parallel, and PS/2 connections for enterprise environments

Trusted by IT teams deploying AVD, Horizon, and Citrix across all sectors including banking, healthcare, and government.

Your IT strategy should never be limited by hardware. ThinClient Direct endpoints are validated and optimized for the leading OS and virtualization platforms.

parallels logo

Specifications

Processor Intel N5105 Quad-Core 2.0 GHz (Jasper Lake, 10W class)
Operating System Rangee, IGEL, Unicon, Praim, Win 11/ Win 11 IoT, and others
Protocol Clients Citrix Workspace App, Omnissa Horizon Client, Microsoft Remote Desktop, and others
RAM 4GB, 8GB, 16GB DDR4
Storage 32-256GB mSATA SSD
Display Outputs 2× DisplayPort, 1× USB-C
Max Resolution 4096 × 2160 @ 60Hz (DP & USB-C)
Networking 1× RJ45 (10/100/1000 Mbps) (second port used when fiber module is installed)
USB 6× USB 2.0, 2× USB 3.0
Legacy Ports 1× Serial (expandable to 4), 1× Parallel, 2× PS/2
Audio Line-out × 1, Mic-in × 1
Dimensions (no stand) 206 × 48 × 215 mm
Dimensions (with stand) 206 × 83 × 223 mm
Weight 1.18 kg
Power Adapter 100–240V AC, 50/60 Hz, 12V/3A DC
TDP < 10W
Mounting Vertical standing feet (standard)
Security Kensington anti-theft keyhole
Cooling Fan-less convection
Operating Temperature 0°C to 40°C
Relative Humidity 30% to 90% (non-condensing)

OPTIONAL UPGRADES

RAM

Expandable to 16GB DDR4

M.2 Expansion

One SATA/PCIe slot (2242 or 2280) plus Wi-Fi module option

Additional Network

Second 1Gb RJ45 (used when fiber module is not installed)

Fiber Ethernet Adapter

Optional integrated module

Internal Speaker

Optional

Additional SATA Storage

Optional

IC Card Reader

Optional

TPM Module

Optional

WHO THIS MODEL IS FOR

The TCD 2 Series 001 is a strong fit for organizations that need:

  • Stable performance for education, enterprise, and workstation environments
  • Native support for legacy peripherals (serial, parallel, PS/2) alongside modern devices
  • Dual-Ethernet connectivity for redundancy or segmented networking
  • Triple-monitor capability for multi-screen productivity
  • A durable, fanless design suitable for continuous use

How it compares to the TCD 2 Series 002:

The primary difference comes down to the processor. The 2 Series 001 uses an Intel N5105 Quad-Core 2.0GHz CPU, while the 2 Series 002 is built on Intel’s Alder Lake N200 platform.

Both are designed for modern EUC environments, with the choice depending on how your team prefers to standardize performance and endpoint consistency across deployments.

WHO THIS MODEL IS FOR

TCD 2 Series 001 thin client endpoint front
TCD 2 Series 001 thin client endpoint back side

Frequently Asked Questions

Yes — it is designed to operate across Citrix, Omnissa (Horizon), Azure Virtual Desktop, Windows 365, and other environments.

Yes. The device is OS-agnostic and supports multiple endpoint operating systems, including IGEL, Rangee, Unicon, Praim, Windows 11, Windows 11 IoT, and other compatible OS options.

Yes. It integrates with many management systems and is also compatible with third-party EUC management platforms.

Yes — via two DisplayPorts and one full-function USB-C port, all capable of 4K @ 60Hz.

Yes — it uses passive convection cooling for silent, maintenance-free operation.

Yes — RAM can be expanded to 16GB, and additional storage options are available via M.2 and SATA.
